AV series roller type one way backstop clutch apply in Netting Making Machine

Product Categories
Changzhou Lisongtai Industrial Motion Technology Co.,LtD
Contact Now

AV series roller type one way backstop clutch apply in Netting Making Machine

  • 1
  • 2
  • 3

Brand Name : R&B

Model Number : AV35

Certification : SGS

Place of Origin : Jiangsu,China

MOQ : 1pcs

Price : USD60.00-150.00/pcs

Supply Ability : 10000pcs/per month

Packaging Details : Industrial packing and commercial packing

Material : Gcr15

Model : AV35

Application : ,textile machine,elevator machine, Strap/belt tighteners • Bucket conveyors • Belt reversing locks

ID : 35mm

OD : 118mm

Height : 54mm

Torqure capacity : 1200N.M

Weight : 3.40kg/pcs

Contact Now

Product Description

SPECIFICATION
Model AV35
Bore diameter 35mm
Outer diameter 118mm
Thickness 54mm
Torque capacity 1200Nm
Overrunning speed 340r/min
Weight 3.4kg
Package Industrial package
Delivery time 7-10 days
Payment terms TT, L/C, D/P, D/A, Western Union, Paypal

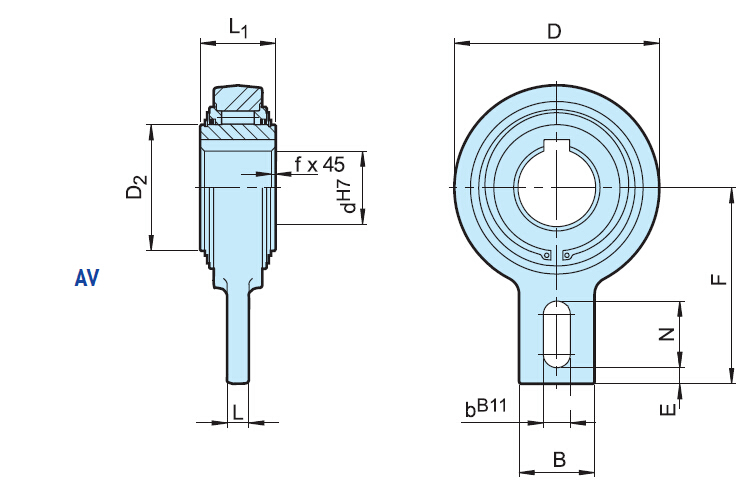

Catalogue of backstop one way clutch for your choice

AV series roller type one way backstop clutch apply in Netting Making Machine

Type Size Torque Overrunning Speeds DIMENSIONS Weight
AV dH7 TKN1) nimax D D2 L1 L B N E bB11 f
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
20 265 450 83 42 35 12 40 35 5 15 0.8 1.3
25 365 450 83 42 35 12 40 35 5 15 0.8 1.3
30 1200 320 118 60 54 15 40 35 8 15 1 3.5
35 1200 320 118 60 54 15 40 35 8 15 1 3.4
40 1200 320 118 60 54 15 40 35 8 15 1 3.3
Quality AV series roller type one way backstop clutch apply in Netting Making Machine wholesale

AV series roller type one way backstop clutch apply in Netting Making Machine Images
